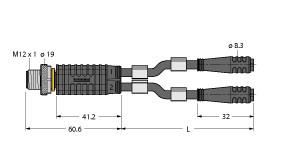

VBRS4.4-2PKG3S-2/2/TEL

Product number:
2-port Junction Systems, Y-Splitter with Cable, Male M12 × 1 - 2x Female Ø 8 mm, Jacket material: PVC, Jacket color: black, Resistant to chemicals and oils, Flame-retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS free, RoHS-compliant, Protection class IP67, Cable length: 2.0/2.0 meter, 4/3-pin

Download specifications
NameValue
Type of branch for trunk line- MV
Type of connector for trunk line- MV
Connection type hood version- MV
Connectable conductor cross section fine-strand without cable end sl (hood vers)- MV Square millimeter
Connectable conductor cross section fine-strand with cable end sl. (hood vers.)- MV Square millimeter
Connectable conductor cross section solid-core (hood version)- MV Square millimeter
Connectable conductor cross section stranded (hood version)- MV Square millimeter
Core cross section finished cable0.34 Square millimeter
Cable screw gland for cable outer diameter- MV Millimeter
Length of the preassembled cable2 Meter
Cable length configurable- MV
Number of sensor-/actuator-slots- MV
Number of channels per connector slot- MV
Type of branches for sensor-/actuator cables- MV
Number of poles sensor/actuator slots- MV
Nominal rated voltage60 Volt
Pollution degree3
Operating voltage60, 60 Volt
Max. current carrying capacity per I/O signal- MV Ampere
Max. current carrying capacity per socket- MV Ampere
Max. total current- MV Ampere
Diameter contact female- MV Millimeter
Material contact bodyBrass
Material of contact surfaceGold
Material insulation bodyOther
Thread sleeves sensor/actuator slots- MV
With LED indicationNo
With potential separation- MV
Connection for NPN-sensors- MV
Fix cable version suitable for cable guide chain- MV
Material housing- MV
Colour housing- MV
Operation temperature-40, 105 Degrees celsius
Degree of protection (IP)IP67
Explosion safety category for gas- MV
Explosion safety category for dust- MV
Width- MV Millimeter
Height- MV Millimeter
Length- MV Millimeter
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101375558
