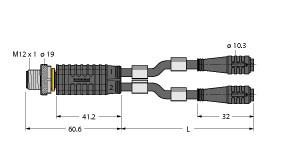

VBRS4.4-2PKG3Z-0.3/0.3/TEL
Product number:
2-port Junction Systems, Y-Splitter with Cable, Male M12 × 1 - 2x Female Ø 8 mm (Pull-Off protection), Jacket material: PVC, Jacket color: black, Resistant to chemicals and oils, Flame-retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS free, RoHS-compliant, Protection class IP67, Cable length: 0.3/0.3 m, 4/3-pin
Download specifications
| Name | Value |
|---|---|
| Type of branch for trunk line | - MV |
| Type of connector for trunk line | - MV |
| Connection type hood version | - MV |
| Connectable conductor cross section fine-strand without cable end sl (hood vers) | - MV Square millimeter |
| Connectable conductor cross section fine-strand with cable end sl. (hood vers.) | - MV Square millimeter |
| Connectable conductor cross section solid-core (hood version) | - MV Square millimeter |
| Connectable conductor cross section stranded (hood version) | - MV Square millimeter |
| Core cross section finished cable | 0.34 Square millimeter |
| Cable screw gland for cable outer diameter | - MV Millimeter |
| Length of the preassembled cable | 0.3 Meter |
| Cable length configurable | - MV |
| Number of sensor-/actuator-slots | - MV |
| Number of channels per connector slot | - MV |
| Type of branches for sensor-/actuator cables | - MV |
| Number of poles sensor/actuator slots | - MV |
| Nominal rated voltage | 60 Volt |
| Pollution degree | 3 |
| Operating voltage | 60, 60 Volt |
| Max. current carrying capacity per I/O signal | - MV Ampere |
| Max. current carrying capacity per socket | - MV Ampere |
| Max. total current | - MV Ampere |
| Diameter contact female | - MV Millimeter |
| Material contact body | Brass |
| Material of contact surface | Gold |
| Material insulation body | Other |
| Thread sleeves sensor/actuator slots | - MV |
| With LED indication | No |
| With potential separation | - MV |
| Connection for NPN-sensors | - MV |
| Fix cable version suitable for cable guide chain | - MV |
| Material housing | - MV |
| Colour housing | - MV |
| Operation temperature | -40, 105 Degrees celsius |
| Degree of protection (IP) | IP67 |
| Explosion safety category for gas | - MV |
| Explosion safety category for dust | - MV |
| Width | - MV Millimeter |
| Height | - MV Millimeter |
| Length | - MV Millimeter |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101375732 |
