Product number:

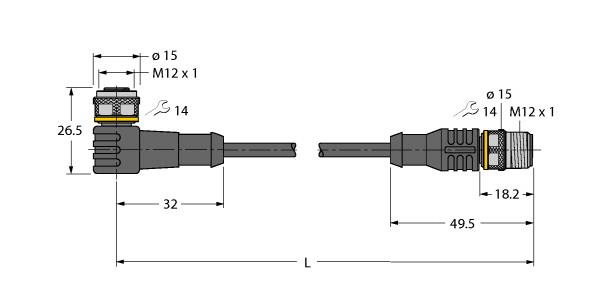

Actuator and Sensor Cable, PUR, Extension Cable, Female M12, angled, 4-pin, Cable length: 10 m, Jacket material: PUR, Jacket color: black, Grip color: yellow, Suitable for drag chain use, Resistant to welding sparks, Resistant to chemicals, UV radiation and oils, Flame-retardant, Free from halogen, silicone, PVC and LABS, Particularly resistant to abrasion, Approval: cULus, RoHS-compliant, Protection class IP67, Male M12, straight, 4-pin

Download specifications
Number of poles4
Type of electrical connection, field-sidedM12
Type of plug-in contact, field sidedMale (plug)
Positioning cable feed, field-sidedStraight
Type of electrical connection, box-sidedM12
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedAngled
Cable length10 Meter
Material of cable sheathPUR (Polyurethane)
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-50, 80 Degrees celsius
Permitted cable outer temperature, in movement-25, 80 Degrees celsius
Rated current In4 Ampere
Nominal rated voltage250 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
