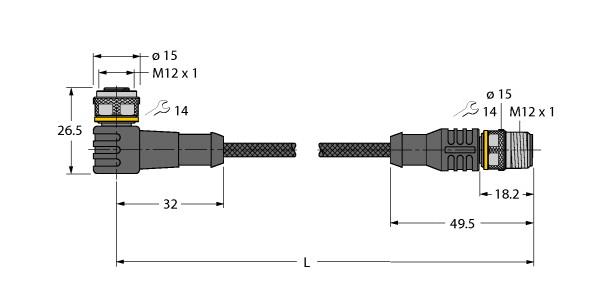

WKC4.5T-P7X3-0.6-RSC4.5T/TXL10
Product number:
Weld-Splatter Resistant Actuator and Sensor Cable, Extension Cable, Female M12, angled, 5-pin, With 3-color LED (PNP, yellow, yellow, green), Cable length: 0.6 m, Jacket material: PUR jacketed with aramid, Jacket color: yellow, Resistant to welding sparks, Flame-retardant, Resistant to chemicals, UV radiation and oils, Free from halogen, silicone, PVC and LABS, RoHS-compliant, Protection class IP67, Protective jacket material: Aramid fibers, Tensile strength: 2923 MPa, Breaking strength: 333 N, Elongation at break: 3.6%, Temperature peaks: up to +200 °C, Male M12, straight, 5-pin
Download specifications
| Name | Value |
|---|---|
| Number of poles | 5 |
| Type of electrical connection, field-sided | M12 |
| Type of plug-in contact, field sided | Male (plug) |
| Positioning cable feed, field-sided | Straight |
| Type of electrical connection, box-sided | M12 |
| Type of plug-in contact, box-sided | Female (bus) |
| Positioning cable feed, box-sided | Angled |
| Cable length | 0.6 Meter |
| Material of cable sheath | PUR (Polyurethane) |
| Halogen free | - MV |
| Colour cable sheath | Yellow Yellow |
| With LED indication | Yes |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -50, 105 Degrees celsius |
| Permitted cable outer temperature, in movement | -30, 90 Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | - MV Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101529982 |
