WKH4.4-P7X2-30-WKH4.4-P7X2/TFE
Product number:

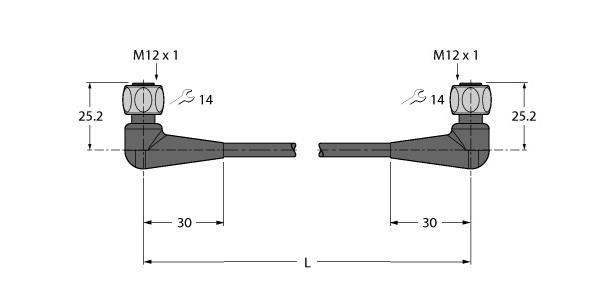

Food & Beverage Hygienic, PVC, Extension Cable, M12 female connector, angled, 4-pin, With 2-color LED (PNP, yellow, green), Stainless steel coupling nut/screw, Cable length: 30 m, Jacket material: PVC, Jacket color: gray RAL 7040, Resistant to acids and alkalis, Resistant to oils and chemicals, Flame-retardant acc. to DIN EN 60332 1-2, DIN EN 60332 2-2, VDE 0482 332-1-2, VDE 0482 332-2-2, Approvals: Gost, Ecolab, RoHS and REACH compliant, Protection class IP67/IP69K, M12 female, angled, 4-pin
Download specifications
| Name | Value |
|---|---|
| Number of poles | 4 |
| Type of electrical connection, field-sided | M12 |
| Type of plug-in contact, field sided | Female (bus) |
| Positioning cable feed, field-sided | Angled |
| Type of electrical connection, box-sided | M12 |
| Type of plug-in contact, box-sided | Female (bus) |
| Positioning cable feed, box-sided | Angled |
| Cable length | 30 Meter |
| Material of cable sheath | PVC |
| Halogen free | - MV |
| Colour cable sheath | Grey Gray |
| With LED indication | Yes |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -25, 80 Degrees celsius |
| Permitted cable outer temperature, in movement | 0, 80 Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | 30 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101435580 |
