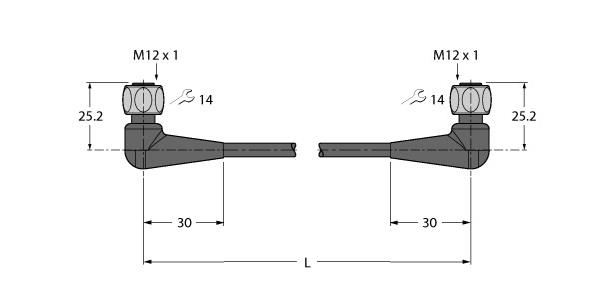

WKH4.4-P7X2-5-WKH4.4-P7X2/TFE

Product number:
Food & Beverage Hygienic, PVC, Extension Cable, M12 female connector, angled, 4-pin, With 2-color LED (PNP, yellow, green), Stainless steel coupling nut/screw, Cable length: 5.0 m, Jacket material: PVC, Jacket color: gray RAL 7040, Resistant to acids and alkalis, Resistant to oils and chemicals, Flame-retardant acc. to DIN EN 60332 1-2, DIN EN 60332 2-2, VDE 0482 332-1-2, VDE 0482 332-2-2, Approvals: Gost, Ecolab, RoHS and REACH compliant, Protection class IP67/IP69K, M12 female, angled, 4-pin

Download specifications
NameValue
Number of poles4
Type of electrical connection, field-sidedM12
Type of plug-in contact, field sidedFemale (bus)
Positioning cable feed, field-sidedAngled
Type of electrical connection, box-sidedM12
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedAngled
Cable length5 Meter
Material of cable sheathPVC
Halogen free- MV
Colour cable sheathGrey Gray
With LED indicationYes
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-25, 80 Degrees celsius
Permitted cable outer temperature, in movement0, 80 Degrees celsius
Rated current In4 Ampere
Nominal rated voltage30 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101435375
