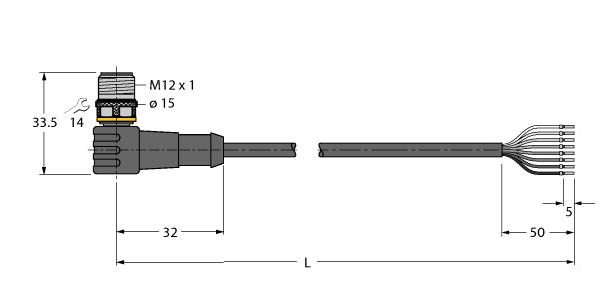

WSC8T-2/TEL
Product number:
Actuator and Sensor Cable, PVC, Connection Cable, Male M12, angled, 8-pin, Cable length: 2.0 m, Jacket material: PVC, Jacket color: black, Resistant to chemicals and oils, Flame-retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS free, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K
Download specifications
| Name | Value |
|---|---|
| Number of poles | 8 |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | M12 |
| Type of plug-in contact, box-sided | Male (plug) |
| Positioning cable feed, box-sided | Angled |
| Cable length | 2 Meter |
| Material of cable sheath | PVC |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -40, 105 Degrees celsius |
| Permitted cable outer temperature, in movement | 0, 80 Degrees celsius |
| Rated current In | 2 Ampere |
| Nominal rated voltage | 30 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101337747 |
