WSH4.4-20/TFG
Product number:

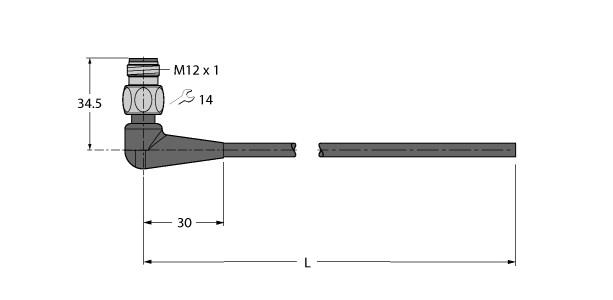

Food & Beverage Hygienic, TPE, Connection Cable, M12 male connector, angled, 4-pin, Stainless steel coupling nut/screw, Sheath material: TPE-O, Sheath color: light gray RAL 7035, Qualified for drag chain use, Resistant to chemicals an microbes, Weatherproof, Resistant to hydrolysis acc. to DIN EN 60068-2-78, Flexible at low temperatures, Free from silicone and PVC, Halogen-free acc. to DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Approvals: Gost, Ecolab, FDA, RoHS and REACH compliant, Protection classes IP67, IP69K, Cable length 20 m
Download specifications
| Name | Value |
|---|---|
| Number of poles | 4 |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | M12 |
| Type of plug-in contact, box-sided | Male (plug) |
| Positioning cable feed, box-sided | Angled |
| Cable length | 20 Meter |
| Material of cable sheath | Other |
| Halogen free | - MV |
| Colour cable sheath | Grey Gray |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -40, 105 Degrees celsius |
| Permitted cable outer temperature, in movement | -25, 105 Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | 250 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101364101 |
