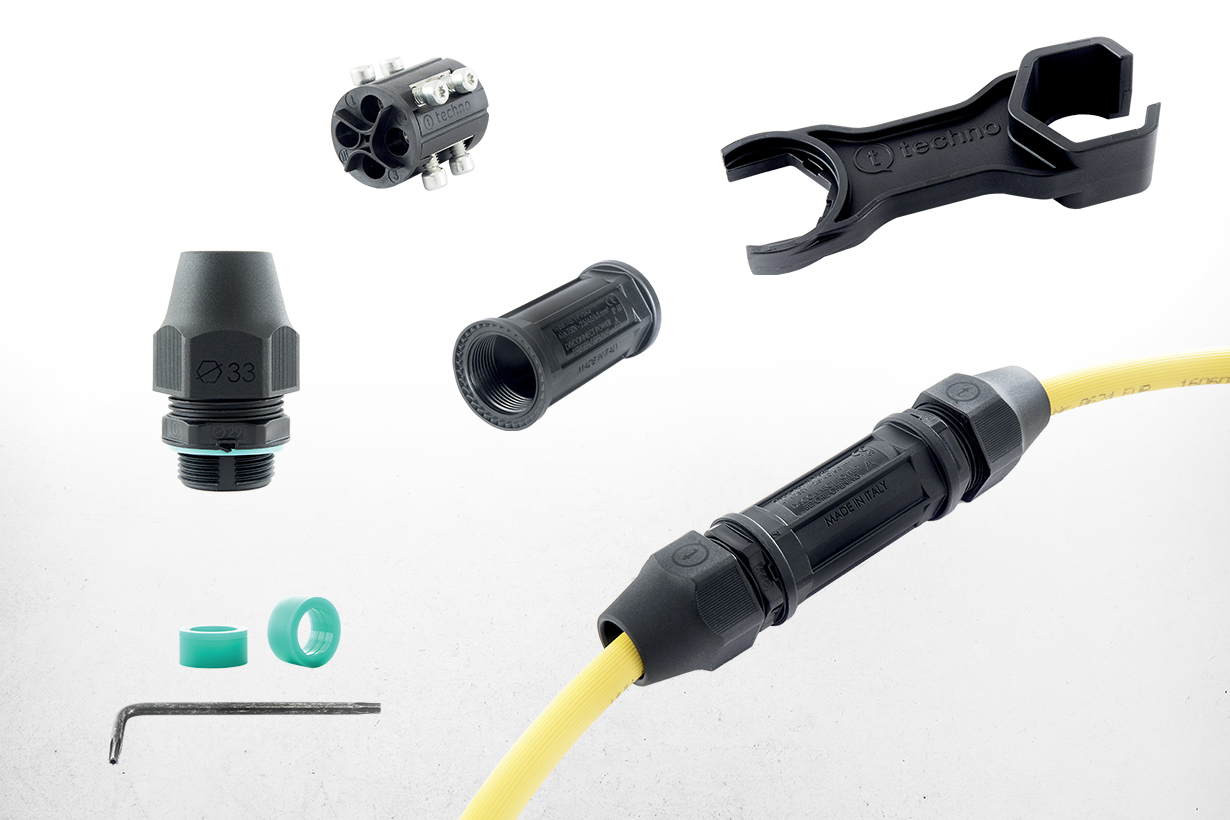

HF Fast Splice Kit III
Product number: HF FSK3P1
EAN number: 5705379120919
EAN number: 5705379120919
Splice power cables in a quick, secure and consistent manner, reducing the risk of fire and electric transition.
HF Fast Splice Kit III for use with the following cable sizes: 4G2.5 mm2, 4G4mm2, 4G6mm2, AGW11/4 and AWG10/4
Splice power cables in a quick, secure and consistent manner, reducing the risk of fire and electric transition.
HF Fast Splice Kit III for use with the following cable sizes: 4G2.5 mm2, 4G4mm2, 4G6mm2, AGW11/4 and AWG10/4
HF Fast Splice Kit III for use with the following cable sizes: 4G2.5 mm2, 4G4mm2, 4G6mm2, AGW11/4 and AWG10/4
Download specifications
| Name | Value |
|---|---|
| Type of Installation | Joint connection ( cable-to-cable) |
| Colour | Black ( Plastic components ) Green ( Silicon components) |
| Outer dimension | Ф 35 mm (diameter) x 160 mm (length) |
| Number of poles | 4 |
| Contact marking | 1 - 2 - 3 |
| Type of connection | Screw with wire protection ( M4 - max. 2Nm) |
| Operating current | Max. 41A |
| Operating voltage | Max. 750V AC/DC |
| Protecting against solid/water (IP) | IP68 (30m, 1h) (according to EN60529:1997) |
| Protection against impact (IK) | IK10 at 20o C / IK09 at -40o C (according to EN60262:2008) |
| Wire cross-section min. - max. | 2.5 mm2 - 6.0 mm2 (AWG11 / AWG10) |
| Cable diameter min. - max. | 11.0 mm - 19.0 mm |
| Body ( Tube) | PA6 I GF |
| Connector housing | PA66 GF V0 |
| Screws | Steel ( Zinc plated) |
| Contacts | CuZn ( Nickel plated) |
| Cable gland | PA66 GF UL94 V0 GWT 960o C |
| Sealing/Grommets | Silicone |
| Material properties | Halogen Free |
| Operating temperature range | -40o C / +125o C |
| Proof Tracking Index (PTI) | PTI 250 |
