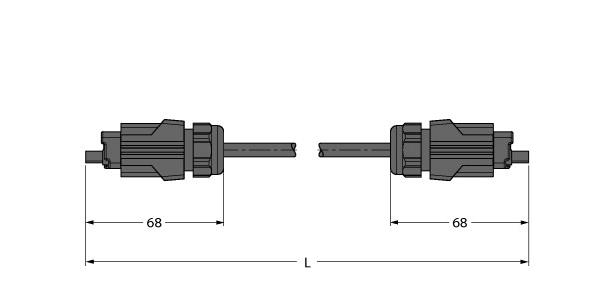

AIDA-GP-AIDA-GP-52-1M
Product number:
Power Cable, PUR, Power cable according to AIDA, Push-pull power connector, 4-pin + PE, Power cable: 5 x 2.5 mm2, Jacket material: PUR, color: gray, Jacket diameter: 10 mm, Conductor: finely stranded according to VDE 0295, class 5/IEC 60228 CI.5, Oil-resistant, Resistant to abrasion and notch, Resistant to hydrolysis and microbes, RoHS-compliant, AIDA-compliant, Protection classes IP65/IP67, Cable length 1 m
Download specifications
Name | Value |
---|---|
Contact type | Pin |
Diameter connector | - MV Millimeter |
Thread size M | - MV Millimeter |
Number of plug-in contacts | - MV |
Type of housing | Straight |
Rated current In | 16 Ampere |
Ambient temperature | -40, 70 Degrees celsius |
Nominal rated voltage | 24 Volt |
Over voltage category | - MV |
Pollution degree | 3 |
Connectable conductor cross section fine-strand without cable end sleeve | - MV Square millimeter |
Connectable conductor cross section fine-strand with cable end sleeve | - MV Square millimeter |
Connectable conductor cross section solid-core | - MV Square millimeter |
Connectable conductor cross section multi-wired | - MV Square millimeter |
Type of electric connection | - MV |
Material of contact surface | Gold |
Material contact | Brass |
Material insulation body | - MV |
Material housing | Zinc |
With interlocking device | - MV |
Locking mechanism | - MV |
Inflammability class of insulation material acc. with UL94 | - MV |
With protective conductor | - MV |
Operation temperature | - MV Degrees celsius |
Degree of protection (IP), mounted | IP65/IP67 |
Coding of M12-round connectors | - MV |
Category for Ethernet cable | - MV |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101406962 |
