BKWM14-E01-2/TEL
Product number:

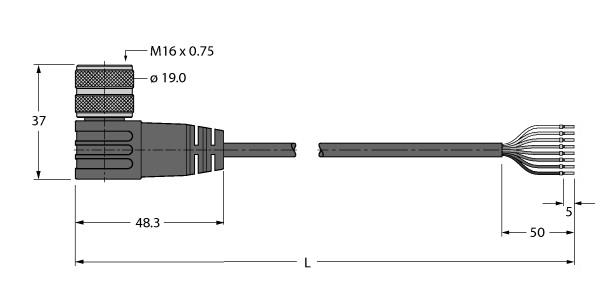

Industrial Sensor Cable, PVC-Kabelmantel, M16 connector, female, angled, 14-pin, Sheath material: PVC, Sheath color: black, Flame-retardant (FT1), Approval: UL and CSA, RoHS-compliant, Protection class IP67, Cable length 2 m
Download specifications
Name | Value |
---|---|
Number of poles | 14 |
Type of electrical connection, field-sided | - MV |
Type of plug-in contact, field sided | - MV |
Positioning cable feed, field-sided | - MV |
Type of electrical connection, box-sided | Other |
Type of plug-in contact, box-sided | Female (bus) |
Positioning cable feed, box-sided | Angled |
Cable length | 2 Meter |
Material of cable sheath | PVC |
Halogen free | - MV |
Colour cable sheath | Black Black |
With LED indication | No |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuZn |
Material of contact surface | Au |
Permitted cable outer temperature, fixed | -40, 105 Degrees celsius |
Permitted cable outer temperature, in movement | - MV Degrees celsius |
Rated current In | 3 Ampere |
Nominal rated voltage | 300 Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101382150 |
