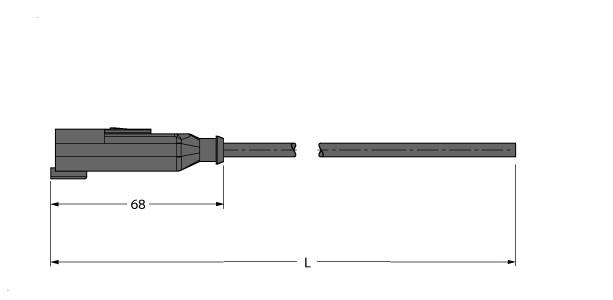

DT04-4P-A-10/TXL
Product number:
Deutsch Connector, Connection Cable, Deutsch connector DT04, straight, 4-pin, Jacket material: TPE-U (PUR), Jacket color: black, similar to RAL 9005, Qualified for drag chain use, Flame-retardant acc. to cULus 20549, Halogen-free acc. DIN VDE 0472 part 815, Approval: cULus, RoHS-compliant, Protection classes IP67/IP69K, Cable length 10 m
Download specifications
| Name | Value |
|---|---|
| Number of poles | 4 |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | Other |
| Type of plug-in contact, box-sided | Male (plug) |
| Positioning cable feed, box-sided | Straight |
| Cable length | 10 Meter |
| Material of cable sheath | PUR (Polyurethane) |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Other |
| Permitted cable outer temperature, fixed | -40, 80 Degrees celsius |
| Permitted cable outer temperature, in movement | -25, 80 Degrees celsius |
| Rated current In | 7 Ampere |
| Nominal rated voltage | 230 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101438567 |
