DT04-8PG-A-5/TXL

Product number:

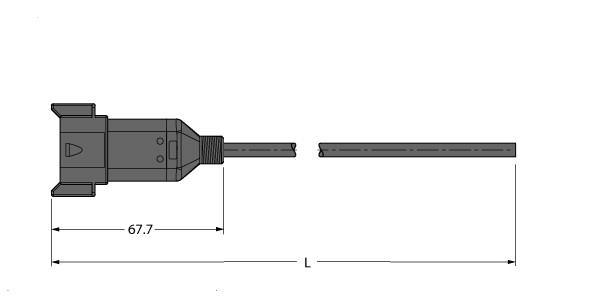

Deutsch Connector, Connection Cable, Deutsch connector DT04, straight, 8-pin, With M12 × 1 thread for thermowell, Jacket material: TPE-U (PUR), Jacket color: black, similar to RAL 7021, Qualified for drag chain use, Flame-retardant acc. to cULus 20549, Halogen-free acc. DIN VDE 0472 part 815, Approval: cULus, RoHS-compliant, Protection classes IP67/IP69K, Cable length 5 m

Download specifications
NameValue
Number of poles8
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sided- MV
Positioning cable feed, field-sided- MV
Type of electrical connection, box-sidedOther
Type of plug-in contact, box-sidedMale (plug)
Positioning cable feed, box-sidedStraight
Cable length5 Meter
Material of cable sheathPUR (Polyurethane)
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceOther
Permitted cable outer temperature, fixed-40, 80 Degrees celsius
Permitted cable outer temperature, in movement-25, 80 Degrees celsius
Rated current In6 Ampere
Nominal rated voltage230 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101438826
