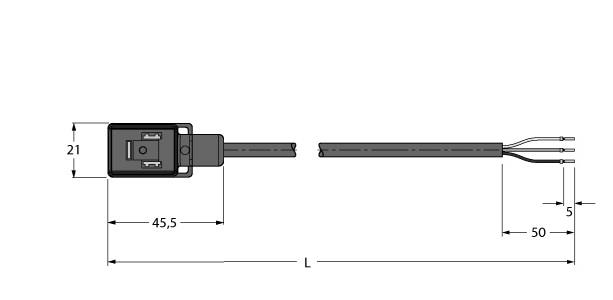

VBS02-E80E-5/TXL
Product number:
Valve connector B type, Connection Cable, 2-pin + PE, Design according to the DIN EN 175301-803, RoHS-compliant, Protection class: IP65, IP67, IP68, Protective component: Varistor, Cable length: 5.0 m, Sheath material: PUR, Sheath color: black, Qualified for drag chain use, Resistant to weld splatter, Resistant to chemicals and oils, UV and ozone resistance, Flame retardant, Free from halogen, silicone, PVC and LABS
Download specifications
| Name | Value |
|---|---|
| Number of poles | 3 |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | Other |
| Type of plug-in contact, box-sided | Male (plug) |
| Positioning cable feed, box-sided | - MV |
| Cable length | 5 Meter |
| Material of cable sheath | PUR (Polyurethane) |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuSn |
| Material of contact surface | Ag |
| Permitted cable outer temperature, fixed | -50, 80 Degrees celsius |
| Permitted cable outer temperature, in movement | -30, 90 Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | 230 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101373479 |
