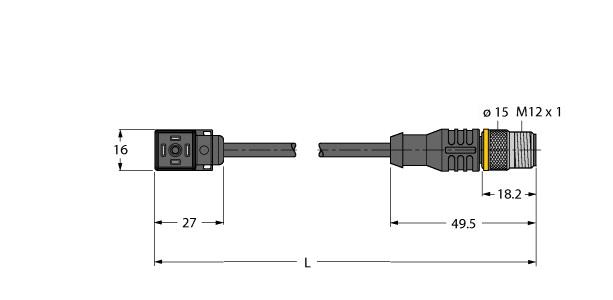

VC9S22-T80E-0.6-RSC5.31T/TEL

Product number:
Valve connector, CI, Extension Cable, 2-pin + PE, bridged, Design according to the DIN EN 175301-803, RoHS-compliant, Protection class: IP65, IP67, IP68, Protective component: Z-diode, Cable length: 0.6 m, Sheath material: PVC, Sheath color: black, Resistant to chemicals and oils, Flame retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS-free, M12 male, straight, 2-pin + PE

Download specifications
NameValue
Number of poles3
Type of electrical connection, field-sidedM12
Type of plug-in contact, field sidedMale (plug)
Positioning cable feed, field-sidedStraight
Type of electrical connection, box-sidedOther
Type of plug-in contact, box-sidedMale (plug)
Positioning cable feed, box-sided- MV
Cable length0.6 Meter
Material of cable sheathPVC
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuSn
Material of contact surfaceAg
Permitted cable outer temperature, fixed-40, 105 Degrees celsius
Permitted cable outer temperature, in movement0, 80 Degrees celsius
Rated current In4 Ampere
Nominal rated voltage24 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101372861
