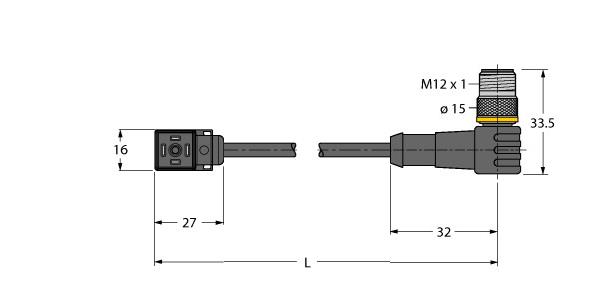

VC9S22-T80E-2-WSC5.31T/TXL
Product number:
Valve connector, CI, 2-pin + PE, bridged, Design according to the DIN EN 175301-803, RoHS-compliant, Protection class: IP65, IP67, IP68, Protective component: Z-diode, Cable length: 2.0 m, Sheath material: PUR, Sheath color: black, Qualified for drag chain use, Resistant to weld splatter, Resistant to chemicals and oils, UV and ozone resistance, Flame retardant, Free from halogen, silicone, PVC and LABS, M12 male, angled, 2-pin + PE
Download specifications
Name | Value |
---|---|
Number of poles | 3 |
Type of electrical connection, field-sided | - MV |
Type of plug-in contact, field sided | Male (plug) |
Positioning cable feed, field-sided | Angled |
Type of electrical connection, box-sided | Other |
Type of plug-in contact, box-sided | Male (plug) |
Positioning cable feed, box-sided | - MV |
Cable length | 2 Meter |
Material of cable sheath | PUR (Polyurethane) |
Halogen free | - MV |
Colour cable sheath | Black Black |
With LED indication | No |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuSn |
Material of contact surface | Ag |
Permitted cable outer temperature, fixed | -50, 80 Degrees celsius |
Permitted cable outer temperature, in movement | -30, 90 Degrees celsius |
Rated current In | 4 Ampere |
Nominal rated voltage | 24 Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101373844 |
