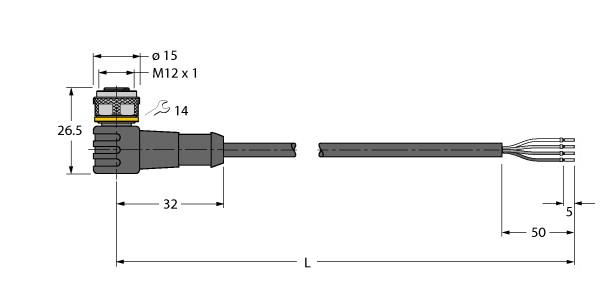

WKC4.4T-P7X2-2/TEL
Product number:
Actuator and Sensor Cable, PVC, Connection Cable, Female M12, angled, 4-pin, With 2-color LED (PNP, yellow, green), Cable length: 2.0 m, Jacket material: PVC, Jacket color: black, Resistant to chemicals and oils, Flame-retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS free, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K
Download specifications
Name | Value |
---|---|
Number of poles | 4 |
Type of electrical connection, field-sided | - MV |
Type of plug-in contact, field sided | - MV |
Positioning cable feed, field-sided | - MV |
Type of electrical connection, box-sided | M12 |
Type of plug-in contact, box-sided | Female (bus) |
Positioning cable feed, box-sided | Angled |
Cable length | 2 Meter |
Material of cable sheath | PVC |
Halogen free | - MV |
Colour cable sheath | Black Black |
With LED indication | Yes |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuZn |
Material of contact surface | Au |
Permitted cable outer temperature, fixed | -40, 105 Degrees celsius |
Permitted cable outer temperature, in movement | 0, 80 Degrees celsius |
Rated current In | 4 Ampere |
Nominal rated voltage | - MV Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101279740 |
