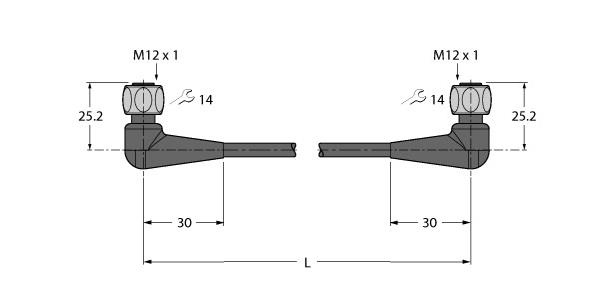

WKH4.4-P7X2-50-WKH4.4-P7X2/TFE
Product number:
Food & Beverage Hygienic, PVC, Extension Cable, M12 female connector, angled, 4-pin, With 2-color LED (PNP, yellow, green), Stainless steel coupling nut/screw, Cable length: 50 m, Jacket material: PVC, Jacket color: gray RAL 7040, Resistant to acids and alkalis, Resistant to oils and chemicals, Flame-retardant acc. to DIN EN 60332 1-2, DIN EN 60332 2-2, VDE 0482 332-1-2, VDE 0482 332-2-2, Approvals: Gost, Ecolab, RoHS and REACH compliant, Protection class IP67/IP69K, M12 female, angled, 4-pin
Download specifications
Name | Value |
---|---|
Number of poles | 4 |
Type of electrical connection, field-sided | M12 |
Type of plug-in contact, field sided | Female (bus) |
Positioning cable feed, field-sided | Angled |
Type of electrical connection, box-sided | M12 |
Type of plug-in contact, box-sided | Female (bus) |
Positioning cable feed, box-sided | Angled |
Cable length | 50 Meter |
Material of cable sheath | PVC |
Halogen free | - MV |
Colour cable sheath | Grey Gray |
With LED indication | Yes |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuZn |
Material of contact surface | Au |
Permitted cable outer temperature, fixed | -25, 80 Degrees celsius |
Permitted cable outer temperature, in movement | 0, 80 Degrees celsius |
Rated current In | 4 Ampere |
Nominal rated voltage | 30 Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101435221 |
