Product number:

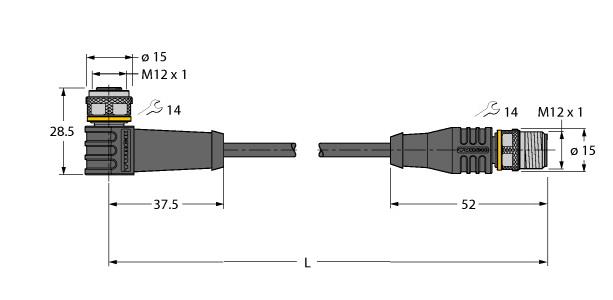

Actuator and Sensor Cable, PVC, Extension Cable, Female M12, angled, 12-pin, Shield on coupling nut/screw, Jacket material: PVC, shielded, Jacket color: black, Resistant to chemicals and oils, Flame-retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS free, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K, Cable length 2 m, Male M12, straight, 12-pin

Download specifications
Number of poles12
Type of electrical connection, field-sidedM12
Type of plug-in contact, field sidedMale (plug)
Positioning cable feed, field-sidedStraight
Type of electrical connection, box-sidedM12
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedAngled
Cable length2 Meter
Material of cable sheathPVC
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-40, 105 Degrees celsius
Permitted cable outer temperature, in movement0, 80 Degrees celsius
Rated current In1.5 Ampere
Nominal rated voltage30 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
