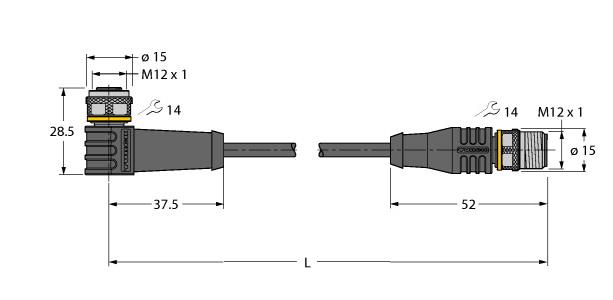

WKS4.4T-0.6-RSS4.4T/TXL

Product number:
Actuator and Sensor Cable, PUR, Extension Cable, Female M12, angled, 4-pin, Shield on coupling nut/screw, Cable length: 0.6 m, Jacket material: PUR, shielded, Jacket color: black, Suitable for drag chain use, Resistant to chemicals, UV radiation and oils, Flame-retardant (FT2 in accordance with UL 1581, IEC 60332-2-2), Free from halogen, silicone, PVC and LABS, Particularly resistant to abrasion, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K, Male M12, straight, 4-pin

Download specifications
NameValue
Number of poles4
Type of electrical connection, field-sidedM12
Type of plug-in contact, field sidedMale (plug)
Positioning cable feed, field-sidedStraight
Type of electrical connection, box-sidedM12
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedAngled
Cable length0.6 Meter
Material of cable sheathPUR (Polyurethane)
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-50, 80 Degrees celsius
Permitted cable outer temperature, in movement-25, 80 Degrees celsius
Rated current In4 Ampere
Nominal rated voltage250 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101334098
