WSC-WKC5701-1M
Product number:

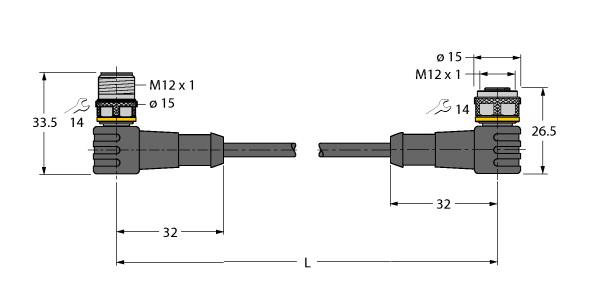

Bus Cable for CAN (DeviceNet, CANopen), PUR Cable Jacket, Thin, Sheathing material: PUR, Jacket color: Anthracite, Power pair: AWG 2/22, Data pair: AWG 2/24, Oil-resistant acc. to VDE 0472, part 803, Flame-retardant acc. to VDE 0472, part 804/B, Halogen-free, UL approval, M12 male connector, angled, A-coded, Cable length 1 m, M12-female, angled, A-coded
Download specifications
| Name | Value |
|---|---|
| Contact type | Pin |
| Diameter connector | - MV Millimeter |
| Thread size M | - MV Millimeter |
| Number of plug-in contacts | - MV |
| Type of housing | Angled |
| Rated current In | 4 Ampere |
| Ambient temperature | -40, 80 Degrees celsius |
| Nominal rated voltage | 250 Volt |
| Over voltage category | - MV |
| Pollution degree | 3 |
| Connectable conductor cross section fine-strand without cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section fine-strand with cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section solid-core | - MV Square millimeter |
| Connectable conductor cross section multi-wired | - MV Square millimeter |
| Type of electric connection | - MV |
| Material of contact surface | Gold |
| Material contact | Brass |
| Material insulation body | Thermoplastic |
| Material housing | Plastic |
| With interlocking device | - MV |
| Locking mechanism | - MV |
| Inflammability class of insulation material acc. with UL94 | - MV |
| With protective conductor | - MV |
| Operation temperature | - MV Degrees celsius |
| Degree of protection (IP), mounted | IP67 |
| Coding of M12-round connectors | - MV |
| Category for Ethernet cable | - MV |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047106146221 |
