WSC4T-10/TXL
Product number:

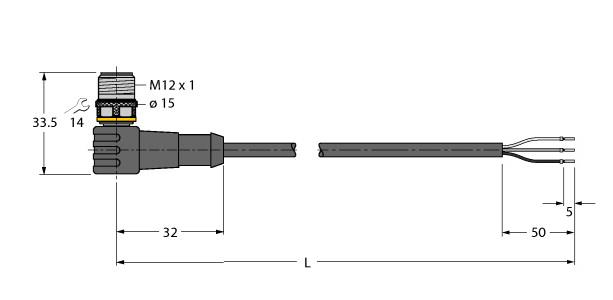

Actuator and Sensor Cable, PUR, Connection Cable, Male M12, angled, 3-pin, Cable length: 10 m, Jacket material: PUR, Jacket color: black, Suitable for drag chain use, Resistant to chemicals, UV radiation and oils, Flame-retardant (FT2 in accordance with UL 1581, IEC 60332-2-2), Free from halogen, silicone, PVC and LABS, Particularly resistant to abrasion, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K
Download specifications
Name | Value |
---|---|
Number of poles | 3 |
Type of electrical connection, field-sided | - MV |
Type of plug-in contact, field sided | - MV |
Positioning cable feed, field-sided | - MV |
Type of electrical connection, box-sided | M12 |
Type of plug-in contact, box-sided | Male (plug) |
Positioning cable feed, box-sided | Angled |
Cable length | 10 Meter |
Material of cable sheath | PUR (Polyurethane) |
Halogen free | - MV |
Colour cable sheath | Black Black |
With LED indication | No |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuZn |
Material of contact surface | Au |
Permitted cable outer temperature, fixed | -50, 80 Degrees celsius |
Permitted cable outer temperature, in movement | -25, 80 Degrees celsius |
Rated current In | 4 Ampere |
Nominal rated voltage | 250 Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101269307 |
