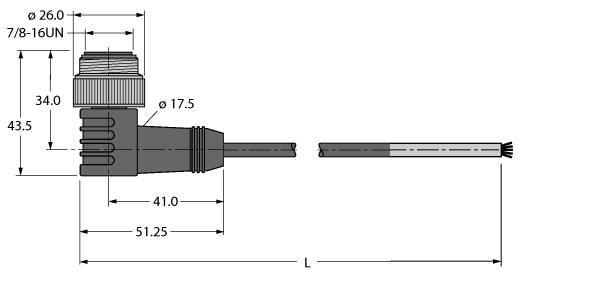

WSM52-10M

Product number:
Power Supply Cable/PUR, Connection Cable, Power cable: 5 x 1.5 mm2, Jacket material: PUR, color: gray, Jacket diameter: 8.5 mm, Suitable for drag chain use, Oil-resistant and flame-retardant, Halogen-free, Cable length: 10 m, 7/8" male, angled, Open end

Download specifications
NameValue
Contact typePin
Diameter connector- MV Millimeter
Thread size M- MV Millimeter
Number of plug-in contacts- MV
Type of housingAngled
Rated current In5.3 Ampere
Ambient temperature-40, 90 Degrees celsius
Nominal rated voltage240 Volt
Over voltage category- MV
Pollution degree3
Connectable conductor cross section fine-strand without cable end sleeve- MV Square millimeter
Connectable conductor cross section fine-strand with cable end sleeve- MV Square millimeter
Connectable conductor cross section solid-core- MV Square millimeter
Connectable conductor cross section multi-wired- MV Square millimeter
Type of electric connection- MV
Material of contact surfaceGold
Material contactBrass
Material insulation bodyThermoplastic
Material housingPlastic
With interlocking device- MV
Locking mechanism- MV
Inflammability class of insulation material acc. with UL94- MV
With protective conductor- MV
Operation temperature- MV Degrees celsius
Degree of protection (IP), mountedIP67
Coding of M12-round connectors- MV
Category for Ethernet cable- MV
Customs tarif #:85444290900
UNIT:Piece
GTIN4047106131500
