Product number:

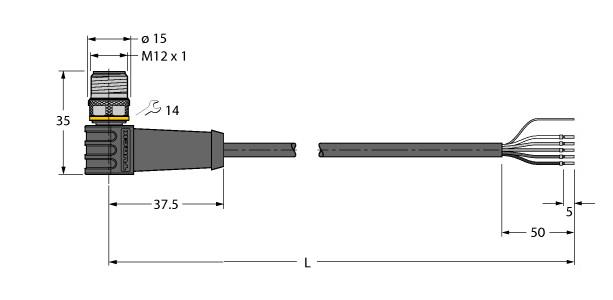

Actuator and Sensor Cable, PVC, Connection Cable, Male M12, angled, 5-pin, Shield on coupling nut/screw, Cable length: 5.0 m, Jacket material: PVC, shielded, Jacket color: black, Resistant to chemicals and oils, Flame-retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS free, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K

Download specifications
Number of poles5
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sided- MV
Positioning cable feed, field-sided- MV
Type of electrical connection, box-sidedM12
Type of plug-in contact, box-sidedMale (plug)
Positioning cable feed, box-sidedAngled
Cable length5 Meter
Material of cable sheathPVC
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-40, 105 Degrees celsius
Permitted cable outer temperature, in movement0, 80 Degrees celsius
Rated current In4 Ampere
Nominal rated voltage60 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
