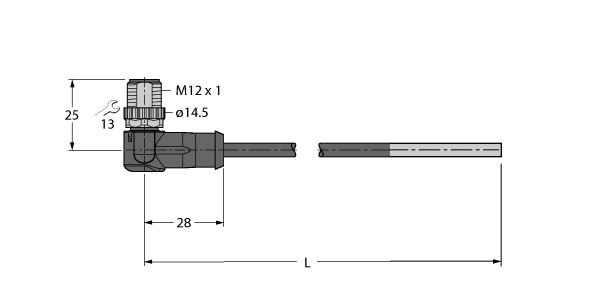

WSSD-4416-6M
Product number:
Industrial Ethernet/PROFINET Cable, PUR Cable Jacket, M12 male connector, angled, D-coded, Cable length: 6.0 m, Ethernet cable: 4-pin, AWG 22, CAT 5E, Jacket material: PUR, Jacket color: green, Shield: Aluminum foil overlapped, tinned copper wire, Jacket diameter: 6.5 mm, Suitable for drag chain use, Oil resistant acc. to IEC 60811-2-1 and UL13, Free from halogen acc. to IEC 60754, Flame-retardant acc. to IEC 60332-1-2 and UL2556 VW1, RoHS-compliant, PNO-compliant, Open end
Download specifications
Name | Value |
---|---|
Contact type | Pin |
Diameter connector | - MV Millimeter |
Thread size M | - MV Millimeter |
Number of plug-in contacts | - MV |
Type of housing | Angled |
Rated current In | 3 Ampere |
Ambient temperature | -50, 70 Degrees celsius |
Nominal rated voltage | 48 Volt |
Over voltage category | - MV |
Pollution degree | 3 |
Connectable conductor cross section fine-strand without cable end sleeve | - MV Square millimeter |
Connectable conductor cross section fine-strand with cable end sleeve | - MV Square millimeter |
Connectable conductor cross section solid-core | - MV Square millimeter |
Connectable conductor cross section multi-wired | - MV Square millimeter |
Type of electric connection | - MV |
Material of contact surface | Gold |
Material contact | Brass |
Material insulation body | Thermoplastic |
Material housing | Plastic |
With interlocking device | - MV |
Locking mechanism | - MV |
Inflammability class of insulation material acc. with UL94 | - MV |
With protective conductor | - MV |
Operation temperature | - MV Degrees celsius |
Degree of protection (IP), mounted | IP67 |
Coding of M12-round connectors | - MV |
Category for Ethernet cable | - MV |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101368895 |
