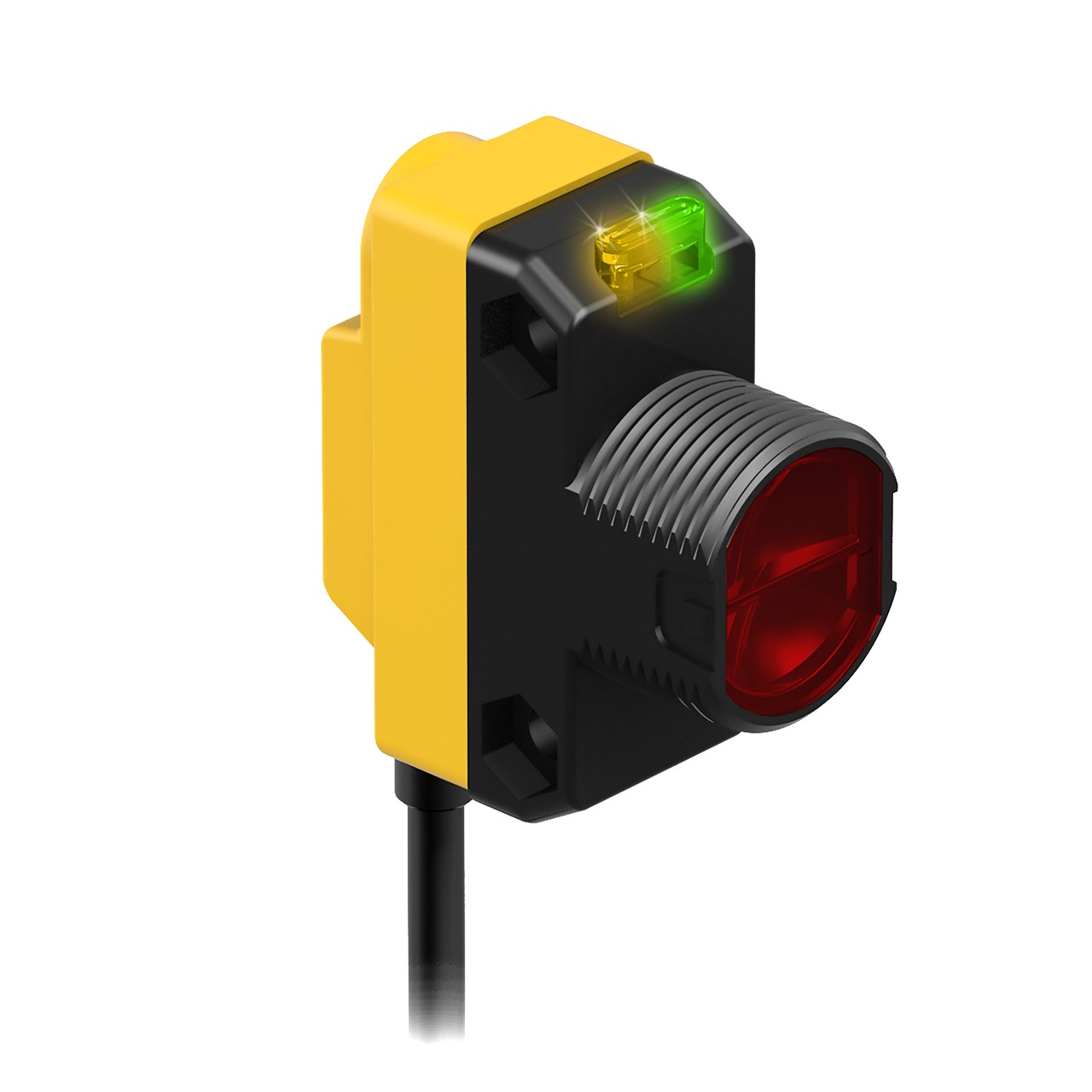

QS18VP6FF100
Product number: QS18VP6FF100
EAN number: 5705378674451
EAN number: 5705378674451
WORLD-BEAM QS18 Series: Fixed-Field; Range: 100 mm cutoff; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| IP Rating | IP67 |
| Cable Length (m) | 2 |
| Sensing Beam | Visible Red LED |
| Power | DC |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Background Suppression (Fixed) |
| Housing Style | Rectangular w/M18 Mount |
| Primary Housing Material | ABS |
| Small Visible Spot | LED |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 100 |
| Outputs | PNP |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection | Cable |
| Operation | Light/Dark Operate |
| Min Op. Temp. (°C) | -20 |
| Max Op. Temp. (°C) | 70 |
| Output response time (ms) | 0.85 |
| Sensing Beam Wavelength | 630 |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 160 |
| Number of Pins | 4 |
| NEMA Rating | NEMA 6 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | N/A |
| Barrel Diameter (mm) | 18 |
| Indicator | LEDs |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Quick Disconnect | No |
| Origin | MX |
| Order Quantity | 1 Each |
| Weight | .16 LB |
| HTS Code (US) | 8541.49.8000 |
| Country of Origin | MX |
| Lead Time (Business Days, updated weekly) | 33 |
