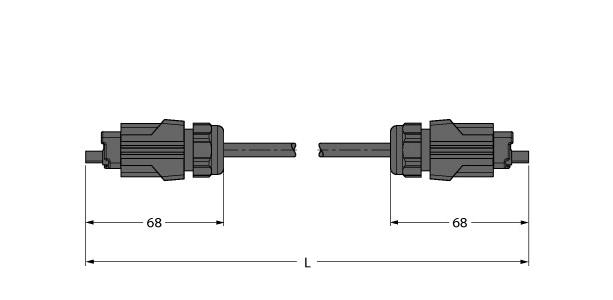

AIDA-GP-AIDA-GP-52-2M
Product number:
Power Cable, PUR, Power cable according to AIDA, Push-pull power connector, 4-pin + PE, Power cable: 5 x 2.5 mm2, Jacket material: PUR, color: gray, Jacket diameter: 10 mm, Conductor: finely stranded according to VDE 0295, class 5/IEC 60228 CI.5, Oil-resistant, Resistant to abrasion and notch, Resistant to hydrolysis and microbes, RoHS-compliant, AIDA-compliant, Protection classes IP65/IP67, Cable length 2 m
Download specifications
| Name | Value |
|---|---|
| Contact type | Pin |
| Diameter connector | - MV Millimeter |
| Thread size M | - MV Millimeter |
| Number of plug-in contacts | - MV |
| Type of housing | Straight |
| Rated current In | 16 Ampere |
| Ambient temperature | -40, 70 Degrees celsius |
| Nominal rated voltage | 24 Volt |
| Over voltage category | - MV |
| Pollution degree | 3 |
| Connectable conductor cross section fine-strand without cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section fine-strand with cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section solid-core | - MV Square millimeter |
| Connectable conductor cross section multi-wired | - MV Square millimeter |
| Type of electric connection | - MV |
| Material of contact surface | Gold |
| Material contact | Brass |
| Material insulation body | - MV |
| Material housing | Zinc |
| With interlocking device | - MV |
| Locking mechanism | - MV |
| Inflammability class of insulation material acc. with UL94 | - MV |
| With protective conductor | - MV |
| Operation temperature | - MV Degrees celsius |
| Degree of protection (IP), mounted | IP65/IP67 |
| Coding of M12-round connectors | - MV |
| Category for Ethernet cable | - MV |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101406955 |
