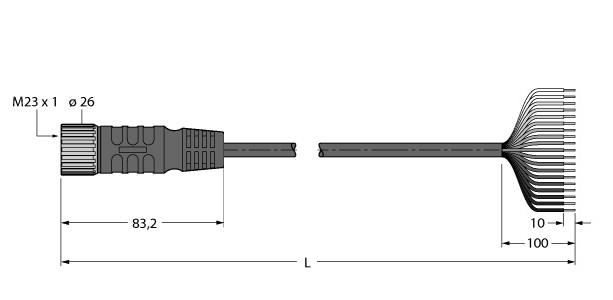

CKM19-19-5/TXL
Product number:
Supply Cable for Multiple Passive Junction Box, PUR, Connection Cable, M23 female, straight, 19-pin, Jacket material: PUR, Jacket color: black, Flame retardant acc. to FT1, Free from halogen, silicone and PVC, Particularly resistant to abrasion, RoHS-compliant, Protection class IP67, Cable length 5 m
Download specifications
| Name | Value |
|---|---|
| Number of poles | 19 |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | Other |
| Type of plug-in contact, box-sided | Female (bus) |
| Positioning cable feed, box-sided | Straight |
| Cable length | 5 Meter |
| Material of cable sheath | PUR (Polyurethane) |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -40, 80 Degrees celsius |
| Permitted cable outer temperature, in movement | - MV Degrees celsius |
| Rated current In | 2 Ampere |
| Nominal rated voltage | 150 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101417043 |
