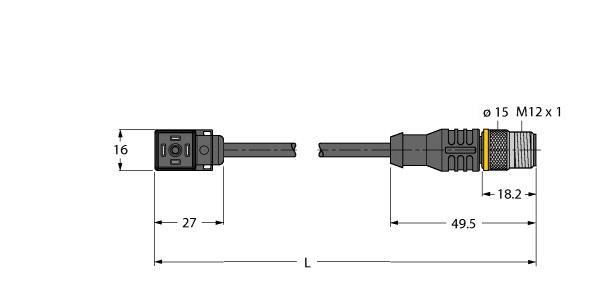

VC9S22-T80E-0.3-RSC5.31T/TXL

Product number:
Valve connector, CI, 2-pin + PE, bridged, Design according to the DIN EN 175301-803, RoHS-compliant, Protection class: IP65, IP67, IP68, Protective component: Z-diode, Cable length: 0.3 m, Sheath material: PUR, Sheath color: black, Qualified for drag chain use, Resistant to weld splatter, Resistant to chemicals and oils, UV and ozone resistance, Flame retardant, Free from halogen, silicone, PVC and LABS, M12 male, straight, 2-pin + PE

Download specifications
NameValue
Number of poles3
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sidedMale (plug)
Positioning cable feed, field-sidedStraight
Type of electrical connection, box-sidedOther
Type of plug-in contact, box-sidedMale (plug)
Positioning cable feed, box-sided- MV
Cable length0.3 Meter
Material of cable sheathPUR (Polyurethane)
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuSn
Material of contact surfaceAg
Permitted cable outer temperature, fixed-50, 80 Degrees celsius
Permitted cable outer temperature, in movement-30, 90 Degrees celsius
Rated current In4 Ampere
Nominal rated voltage24 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101373745
