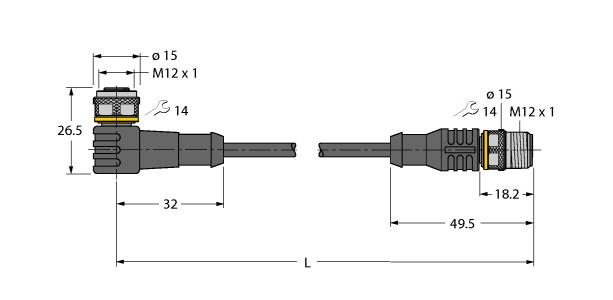

WKC4.4T-1-RSC4.4T/TXL3013
Product number:
Actuator and Sensor Cable, PUR, Extension Cable, Female M12, angled, 4-pin, Cable length: 1.0 m, Jacket material: PUR, Jacket color: black, Grip color: yellow, Suitable for drag chain use, Resistant to welding sparks, Resistant to chemicals, UV radiation and oils, Flame-retardant, Free from halogen, silicone, PVC and LABS, Particularly resistant to abrasion, Approval: cULus, RoHS-compliant, Protection class IP67, Male M12, straight, 4-pin
Download specifications
| Name | Value |
|---|---|
| Number of poles | 4 |
| Type of electrical connection, field-sided | M12 |
| Type of plug-in contact, field sided | Male (plug) |
| Positioning cable feed, field-sided | Straight |
| Type of electrical connection, box-sided | M12 |
| Type of plug-in contact, box-sided | Female (bus) |
| Positioning cable feed, box-sided | Angled |
| Cable length | 1 Meter |
| Material of cable sheath | PUR (Polyurethane) |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -50, 80 Degrees celsius |
| Permitted cable outer temperature, in movement | -25, 80 Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | 250 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101404562 |
