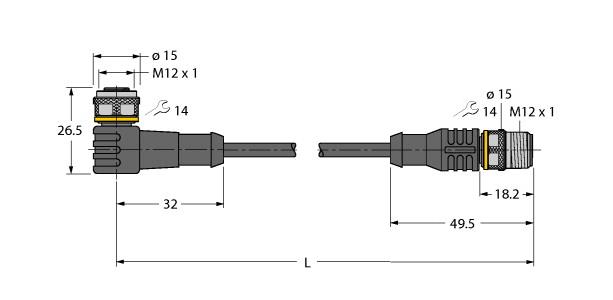

WKC8T-0.3-RSC8T/TEL

Product number:
Actuator and Sensor Cable, PVC, Extension Cable, Female M12, angled, 8-pin, Cable length: 0.3 m, Jacket material: PVC, Jacket color: black, Resistant to chemicals and oils, Flame-retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS free, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K, Male M12, straight, 8-pin

Download specifications
NameValue
Number of poles8
Type of electrical connection, field-sidedM12
Type of plug-in contact, field sidedMale (plug)
Positioning cable feed, field-sidedStraight
Type of electrical connection, box-sidedM12
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedAngled
Cable length0.3 Meter
Material of cable sheathPVC
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-40, 105 Degrees celsius
Permitted cable outer temperature, in movement0, 80 Degrees celsius
Rated current In2 Ampere
Nominal rated voltage30 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101318142
